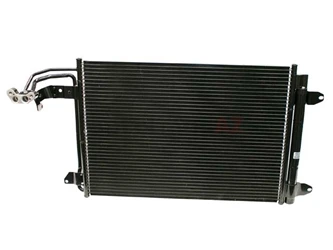

Mahle Behr 1K0820411Q, 70816251NA A/C Condenser – Audi, VW | 1K0820411AH 1K0820411B 1K0820411D 1K0820411E

• 1K0820411AH
• 1K0820411B
• 1K0820411D
• 1K0820411E
• 1K0820411F
• 1K0820411G
• 1K0820411H
• 1K0820411J
• 1K0820411N
• 1K0820411P
• 1K0820411S
• 1K0820411T
• 351301041
• 5M0298403
• 70816251NA

The AC condenser on your vehicle removes heat from compressed refrigerant while condensing the refrigerant from a gas to a liquid. Similar to the radiator that removes heat from engine coolant, the AC condenser is mounted at the front of your vehicle and has finned cooling coils. As compressed refrigerant is pumped from the compressor it flows into the condenser where air flows over the cooling coils, removing heat from the refrigerant. As the refrigerant cools, it converts from a gas to a liquid reaching temperatures near freezing. The cold liquid refrigerant then flows to the AC evaporator to cool the air flowing into the passenger cabin of your vehicle.

AC condensers are susceptible to damage from road debris. It is recommended to inspect the AC condenser at every service for clogged cooling fins and dents from debris that can lead to puncture holes, draining your AC system of refrigerant.

The cooling coils of the AC condenser are narrow and can easily be blocked by debris that may have entered the AC system. It is recommended to replace the AC condenser along with the receiver drier, expansion valve and orifice tube if the AC compressor experiences a critical failure.

Replacing Your AC Condenser

Replacement of the AC condenser requires the AC system to be evacuated of refrigerant before being replaced. The AC system must also be placed under vacuum prior to refilling the system with refrigerant to the proper pressure. Replacing the AC condenser is not a DIY repair without extensive knowledge of automotive AC systems, a vacuum pump, and correct AC manifold gauges for your vehicle.

Mahle AC Condensers.
