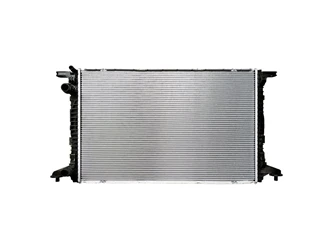

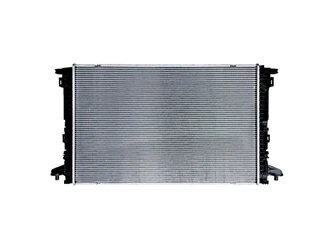

TYC 13665 Radiator Assembly; Primary – Audi | 8013665 8W0121251AK AU3010154 SBR13665

Original price was: $129.93.Current price is: $90.95.

Quality Meets Affordability

Online customer care, always here for you.

Control the delivery date and try to deliver it in the fastest time

Secure Payments, Secure Shopping

P/N: 13665 TYC

Description:

Primary

Cross References:

8013665
8W0121251AK
AU3010154
SBR13665

OE-comparable core dimensions to achieve sufficent surface area for optimal cooling.
Rigorous and accelerated cycling tests to ensure product service quality and durability.
Individually leak-tested to ensure product has no leaks.

Core Material: Aluminum
Transmission Oil Cooler Included: No
Engine Oil Cooler Included: No
Bottom Header: 1.69×19.27
Fin Count (every 4″): 107
Top Header: 1.69×19.27
Core Thickness (in): 1.02
Tube Count (every 4″): 12
Outlet Connection Type: Quick Connect (Spring Lock)
Inlet Connection Type: Quick Connect (Spring Lock)
Inlet Diameter (in): 1.28
Tube Width X Height: 26×2
Find Wave Pitch: 1.9
Core Length (in): 28.35
Total Fin Row Count: 57
Total Tube Count: 56
Core Height (in): 18.55
Flow Configuration: Crossflow
No. Of Rows: 1
Fin Wave Height (in): 0.25
Outlet Diameter (in): 1.28

Left = Driver side and Right = Passenger side.

All parts are priced individually unless identified as a set or kit. “Per car” notes identify how many of a given part your car has and
“Left/Right or Front/Rear” notes means the part fits the left or right side of the car. These parts are still sold individually and you’ll
need to select the appropriate quantity if you plan to replace more than one of this item.
