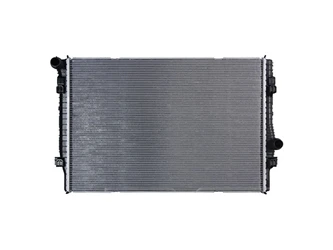

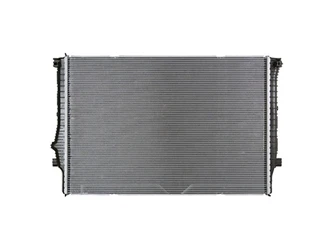

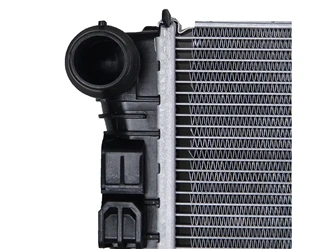

TYC 13703 Radiator Assembly; Primary – VW | 5Q0121251GQ VW3010166

P/N: 13703 TYC

• OE-comparable core dimensions to achieve sufficent surface area for optimal cooling.
• Rigorous and accelerated cycling tests to ensure product service quality and durability.
• Individually leak-tested to ensure product has no leaks.

• Core Material: Aluminum
• Transmission Oil Cooler Included: No
• Engine Oil Cooler Included: No
• Fin Count (every 4″): 85
• Core Thickness (in): 1.26
• Tube Count (every 4″): 17
• Outlet Connection Type: Spring Lock
• Inlet Connection Type: Spring Lock
• Find Wave Pitch: 2.4
• Core Length (in): 25.59
• Total Tube Count: 74
• Core Height (in): 17.66
• Built-in Oil Cooler: No
• Flow Configuration: Crossflow
• Outlet Diamter: 32.5mm
• Inlet Diameter: 32.5mm
• Fin Wave Height (in): 4.5
• Rows: 1

Left = Driver side and Right = Passenger side.

All parts are priced individually unless identified as a set or kit. “Per car” notes identify how many of a given part your car has and
“Left/Right or Front/Rear” notes means the part fits the left or right side of the car. These parts are still sold individually and you’ll
need to select the appropriate quantity if you plan to replace more than one of this item.
